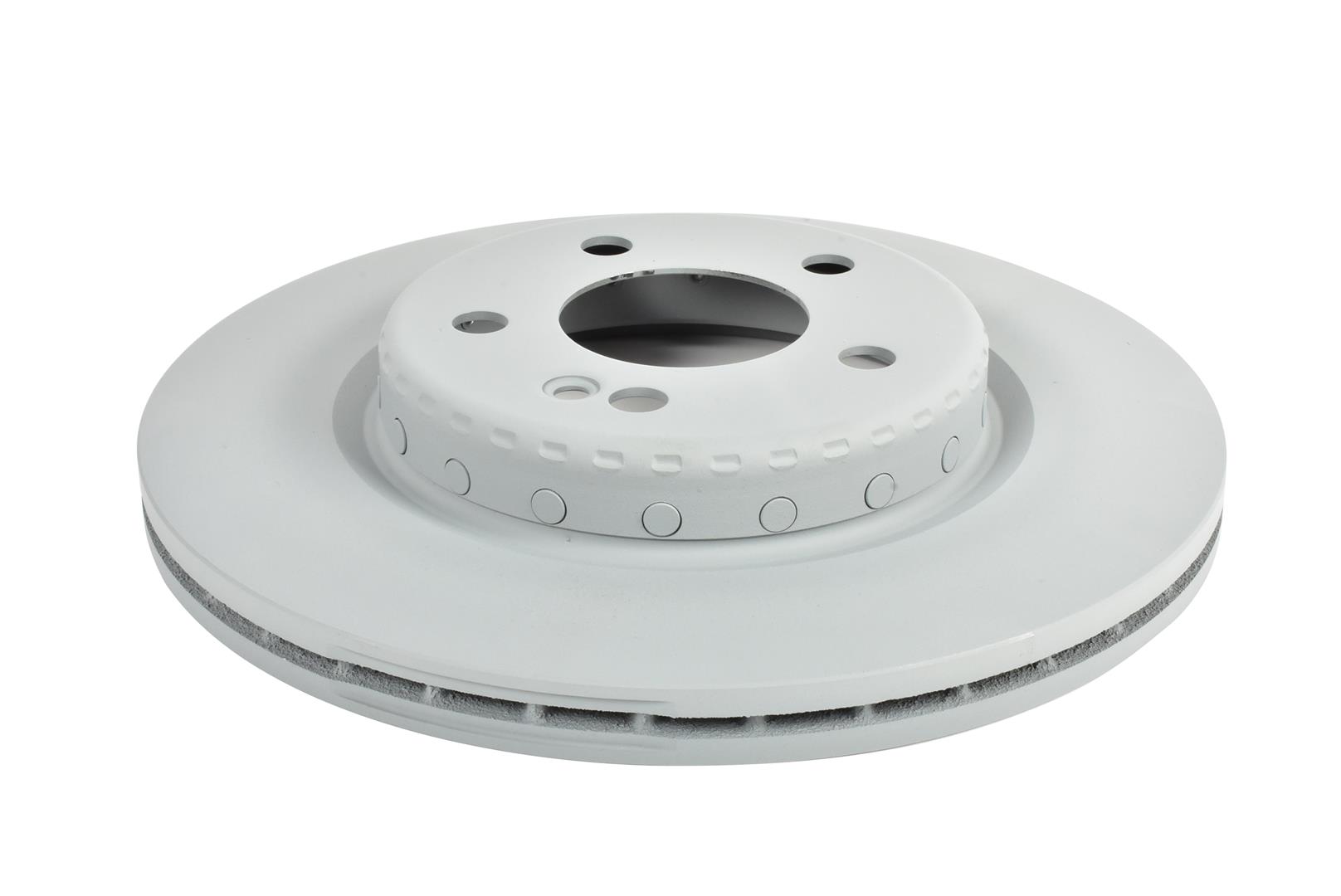

DBA Street Series Hybrid Composite Plain Brake Disc 300mm x 22mm Vented DBA3357HOE - Rear
Adopting the two-piece OEM design, DBA offers its own version of a Hybrid Composite (HC) rotor, composed of a cast iron braking surface (disc ring) and an aluminium or steel hat, which are permanently bonded together by a series of rivets or through co-casting. The rotor features DBA's own iron composition for enhancement. Its two-piece design may reduce the overall weight by up to 15% compared with a conventional one-piece rotor.
Full R90 certification provides additional peace of mind. The Street Series Hybrid Rotor range offers an attractive replacement alternative to owners of mainly high-end European vehicles. Hybrid rotors are denoted by the suffix (HOE) in Street Series part numbers.
-
Axle PositionRear
-
Branddba
-
Tech BulletinsBedding in Brakes — https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting — https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info — https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
-
Height mm48,5
-
Thickness mm22
-
Diameter mm300
-
Disc VentVented
-
Number of Holes5
-
Minimum Thickness mm19,4
-
Inner Diameter mm69
