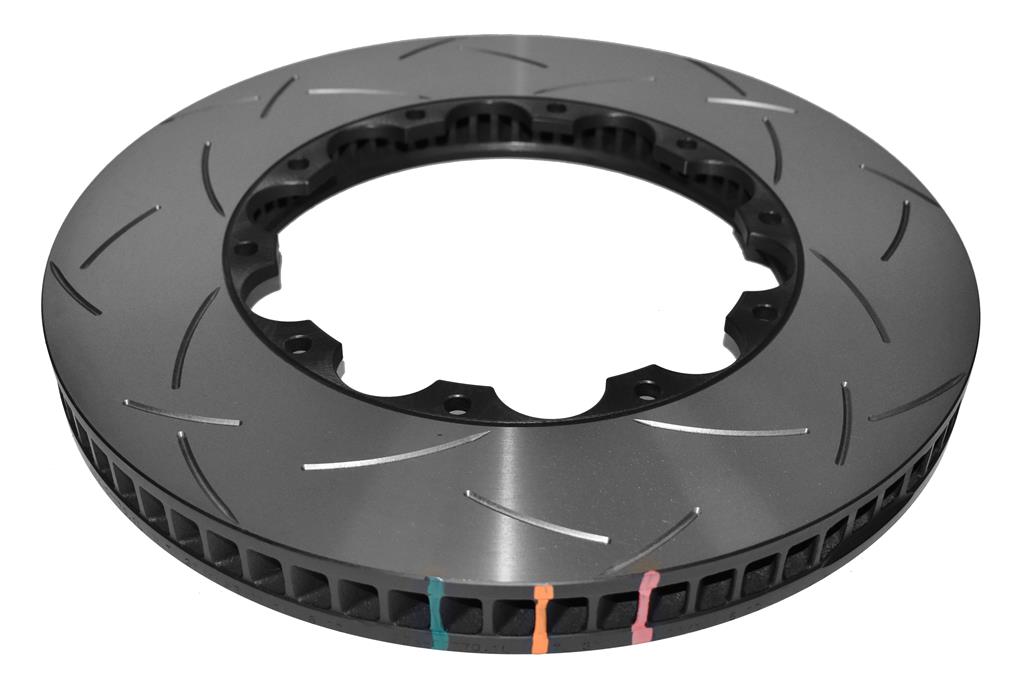

DBA 5000 series T3 Slotted Rotor Only Right Hand Brake Disc 370mm x 34mm 72 Curved Vanes DBA52770.1RS - Front

Make	Model	Sub Model	Year

- Weight
  22.38 KG
- SKU
  DBA52770.1RS
Axle Position
Front
Brand
dba
Tech Bulletins
Bedding in Brakes https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
Thickness mm
34
Diameter mm
370
Disc Vent
72 Curved Vanes
Stage
Stage 5
Air Gap mm
17
Annulus mm Maximum useable pad width
68
Diameter & Number of Bolt Holes mm
9 (x10)
Flange Inside Diameter mm
191
Flange Thickness mm
7
Hole Type
Round Hole
Pitch Circle Diameter P.C.D
215
Offset mm
No
Inside Diameter mm
231
Replacement Nuts
Included
