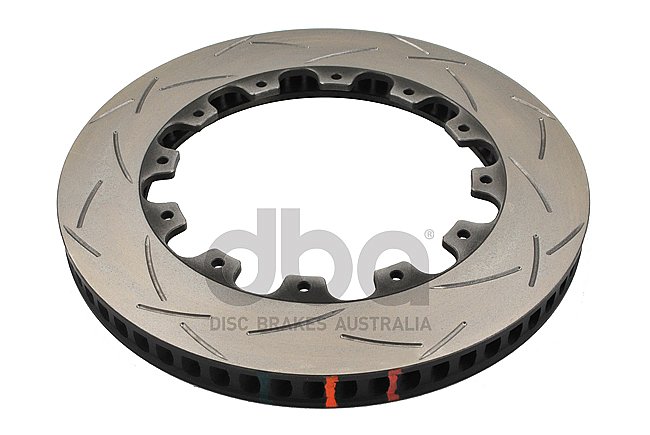

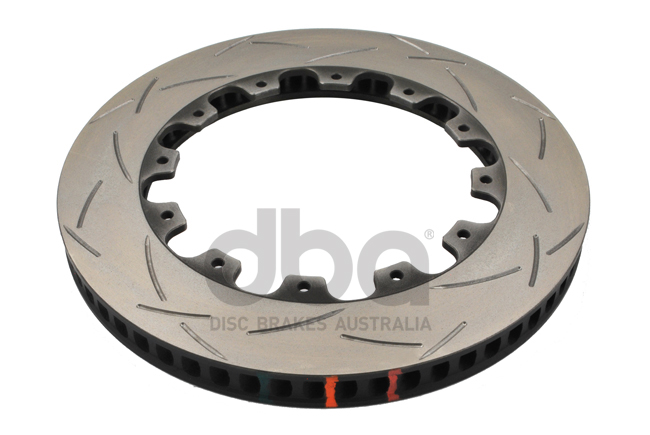

DBA 5000 series T3 Slotted Rotor Only Right Hand Brake Disc 308mm x 26mm 60 Curved Vanes DBA52231.1RS
  • DBA 5000 series T3 Slotted Rotor Only Right Hand Brake Disc 308mm x 26mm 60 Curved Vanes DBA52231.1RS
  • DBA 5000 series T3 Slotted Rotor Only Right Hand Brake Disc 308mm x 26mm 60 Curved Vanes DBA52231.1RS

DBA 5000 series T3 Slotted Rotor Only Right Hand Brake Disc 308mm x 26mm 60 Curved Vanes DBA52231.1RS

Not rated yet
0
Vehicle Specific
  • £427.42
  • including VAT
Qty:
Available to order
  • Fitment Type
    Vehicle Specific
Make Model Sub Model Year
    • Weight
      5.5 KG
    • SKU
      DBA52231.1RS
  • Brand
    dba
  • Tech Bulletins
    Bedding in Brakes — https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting — https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info — https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
  • Thickness mm
    26
  • Diameter mm
    308
  • Disc Vent
    60 Curved Vanes
  • Stage
    Stage 5
  • Air Gap mm
    14
  • Annulus mm Maximum useable pad width
    47,5
  • Diameter & Number of Bolt Holes mm
    6.4 (x12)
  • Flange Inside Diameter mm
    174
  • Flange Thickness mm
    6,6
  • Hole Type
    Round Hole
  • Pitch Circle Diameter P.C.D
    190,5
  • Offset mm
    No
  • Inside Diameter mm
    213
  • Replacement Nuts
    Included
