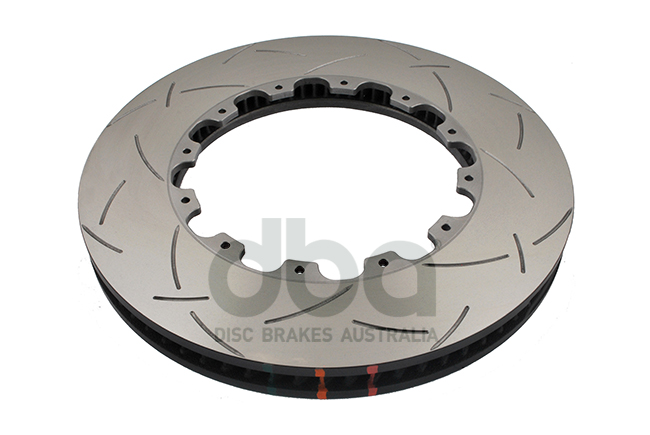

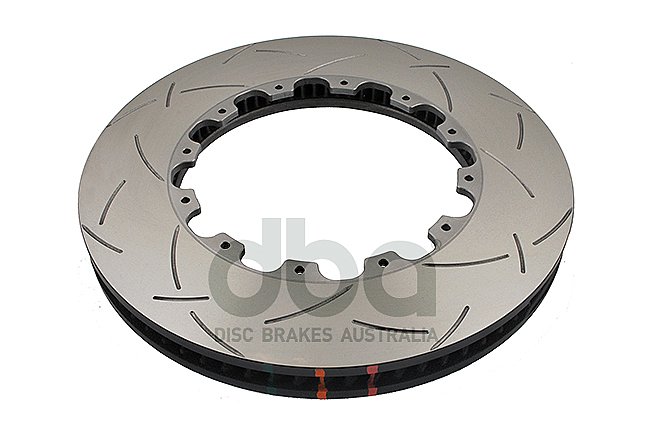

DBA 5000 series T3 Slotted Rotor Only Left Hand Brake Disc 390mm x 35.6mm 72 Curved Vanes DBA52068.1LS

Make	Model	Sub Model	Year

- Weight
  12.48 KG
- SKU
  DBA52068.1LS
Brand
dba
Tech Bulletins
Bedding in Brakes — https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting — https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info — https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
Thickness mm
35,6
Diameter mm
390
Disc Vent
72 Curved Vanes
Stage
Stage 5
Air Gap mm
17
Annulus mm Maximum useable pad width
71,5
Diameter & Number of Bolt Holes mm
6.4 (x12)
Flange Inside Diameter mm
208
Flange Thickness mm
7
Hole Type
Round Hole
Pitch Circle Diameter P.C.D
228,6
Offset mm
No
Inside Diameter mm
247
Replacement Nuts
Included
