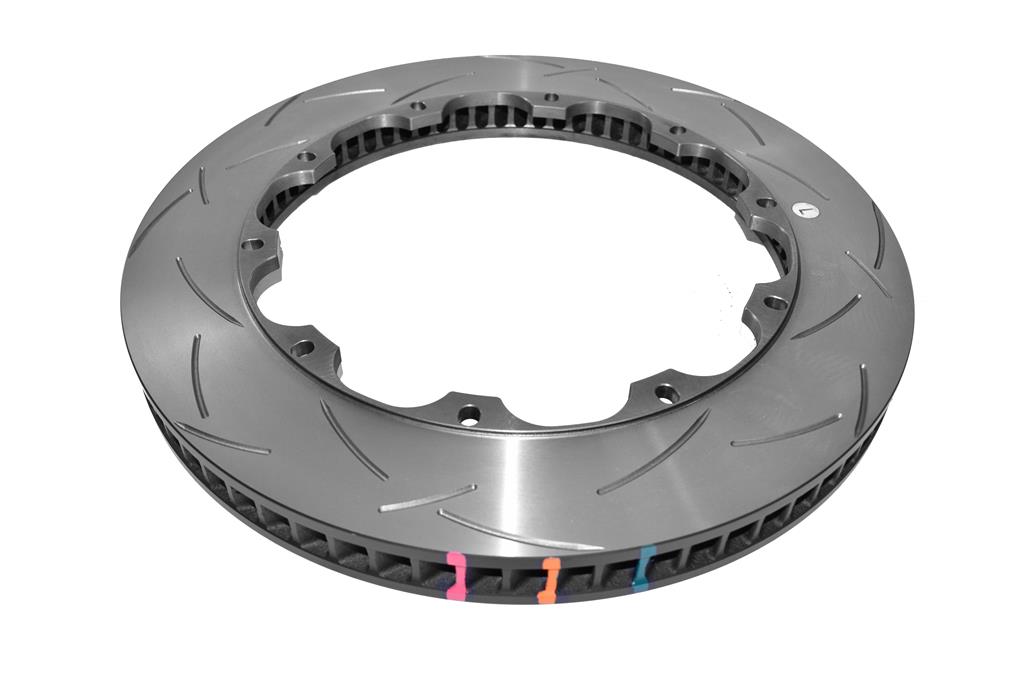

DBA 5000 series T3 Slotted Rotor Only Left Hand Brake Disc 380mm x 32mm 72 Curved Vanes DBA52933.1LS
-
Branddba
-
Tech BulletinsBedding in Brakes https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
-
Thickness mm32
-
Diameter mm380
-
Disc Vent72 Curved Vanes
-
StageStage 5
-
Air Gap mm17
-
Annulus mm Maximum useable pad width52,5
-
Diameter & Number of Bolt Holes mm8.15 (x10)
-
Flange Inside Diameter mm234,5
-
Flange Thickness mm8
-
Hole TypeRound Hole
-
Pitch Circle Diameter P.C.D258
-
Offset mm2,5
-
Inside Diameter mm275
-
Replacement NutsNot Included
