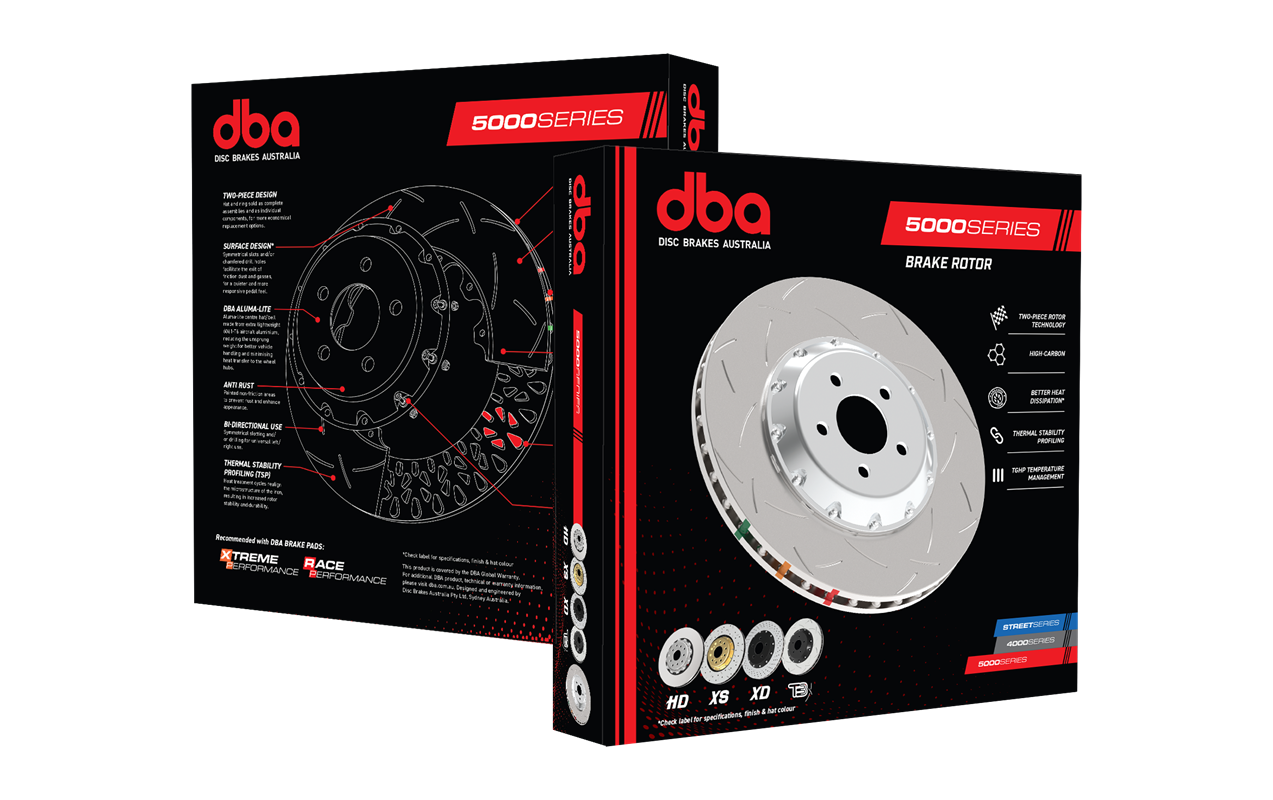

DBA 5000 series T3 Slotted Rotor Only Left Hand Brake Disc 355mm x 32mm 48 Curved Vanes DBA52906.1LS

Make	Model	Sub Model	Year

- Weight
  15.58 KG
- SKU
  DBA52906.1LS
Brand
dba
Tech Bulletins
Bedding in Brakes https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
Thickness mm
32
Diameter mm
355
Disc Vent
48 Curved Vanes
Stage
Stage 5
Air Gap mm
16
Annulus mm Maximum useable pad width
54
Diameter & Number of Bolt Holes mm
6.4 (x12)
Flange Inside Diameter mm
222
Flange Thickness mm
6,4
Hole Type
Round Hole
Pitch Circle Diameter P.C.D
234,95
Offset mm
No
Inside Diameter mm
248
Replacement Nuts
Included
