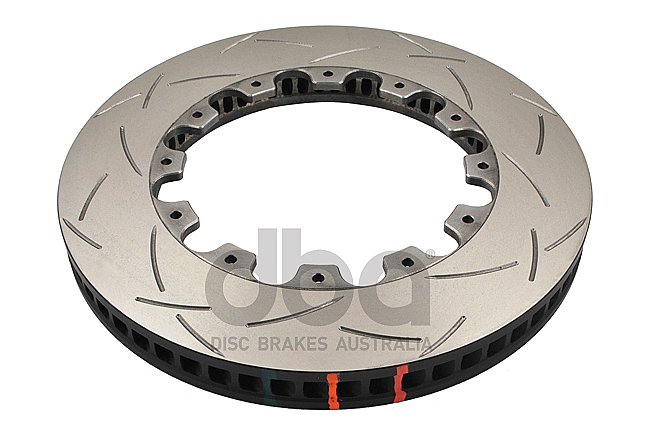

DBA 5000 series T3 Slotted Rotor Only Left Hand Brake Disc 332mm x 32mm 60 Curved Vanes DBA52908.1LS

Make	Model	Sub Model	Year

- Weight
  17.7 KG
- SKU
  DBA52908.1LS
Brand
dba
Tech Bulletins
Bedding in Brakes https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
Thickness mm
32
Diameter mm
332
Disc Vent
60 Curved Vanes
Stage
Stage 5
Air Gap mm
13,5
Annulus mm Maximum useable pad width
56,5
Diameter & Number of Bolt Holes mm
6.4 (x12)
Flange Inside Diameter mm
178
Flange Thickness mm
6,55
Hole Type
Round Hole
Pitch Circle Diameter P.C.D
199,9
Offset mm
No
Inside Diameter mm
219
Replacement Nuts
Not Included
