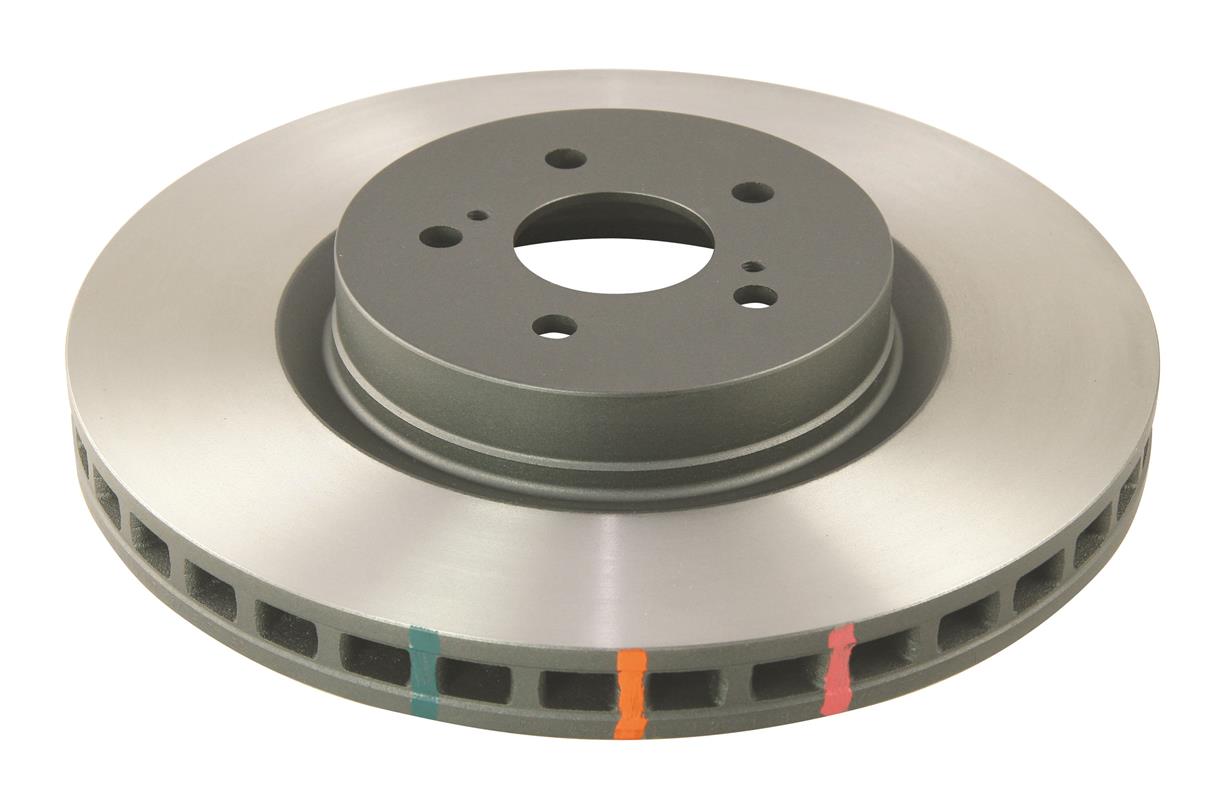

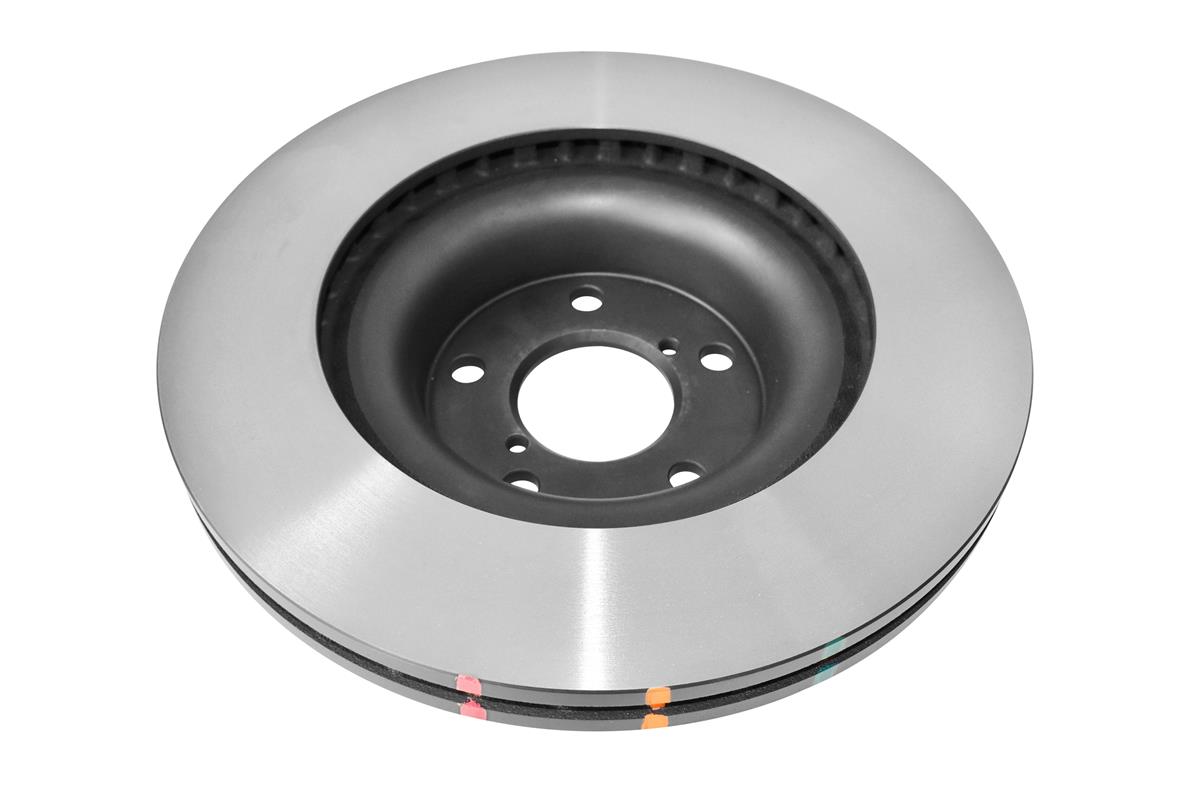

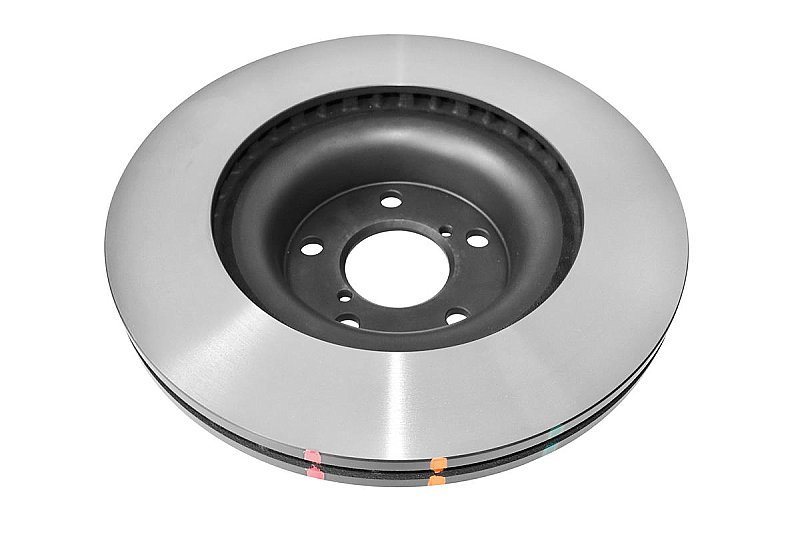

DBA 4000 series Plain Brake Disc 294mm x 24mm Kangaroo Paw DBA4650 - Front
-
Fitment TypeVehicle Specific
| Make | Model | Sub Model | Year |
|---|---|---|---|
| Subaru | Impreza Saloon | 2.0 Turbo UK300 | 2001 |
| Subaru | Impreza Saloon | 2.0 Turbo WRX | 2001-2005 |
| Subaru | Impreza Saloon | 2.5 Turbo WRX | 2005-2007 |
| Subaru | BRZ | 2.0 (ZC6) (Vented Rear Discs) | 2012-2021 |
| Toyota | GT 86 | 2.0 (200hp) 16" Wheels | 2012-2021 |
4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels. 4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions. Cast from high carbon alloyed iron and undergoing.
Thermal Stability Profiling, DBA's metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again. Featuring DBA's Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
-
Axle PositionFront
-
Tech BulletinsBedding in Brakes https://ozparts.eu/pdf/Technical-Bulletin-Bedding-In-Brakes.pdf | How to clean a Disc Rotor before fitting https://ozparts.eu/pdf/Technical-Bulletin-How-to-clean-a-Disc-Rotor-before-fitting.pdf | Motorsport - Important Info https://ozparts.eu/pdf/Technical-Bulletin-Motorsport-Information.pdf
-
Height mm57
-
Thickness mm24
-
Diameter mm294
-
Disc VentKangaroo Paw
-
Number of Holes5
-
Minimum Thickness mm22
-
Inner Diameter mm58
-
ECE R90 numberE11*90R02/06*59762*00
-
Pitch Circle mm100
